AXON / PROFESSIONAL UAV POWER / EUROPE

POWER THE
MISSION.

High-discharge battery systems for professional UAV platforms. Select a proven pack—or configure the voltage, energy class and current envelope your aircraft demands.

SELECT A PACK ↘BUILD YOUR SYSTEM

3S–20SCustom voltage architecture

115–592 WhLaunch pack range

280–600Wh/kg cell classes

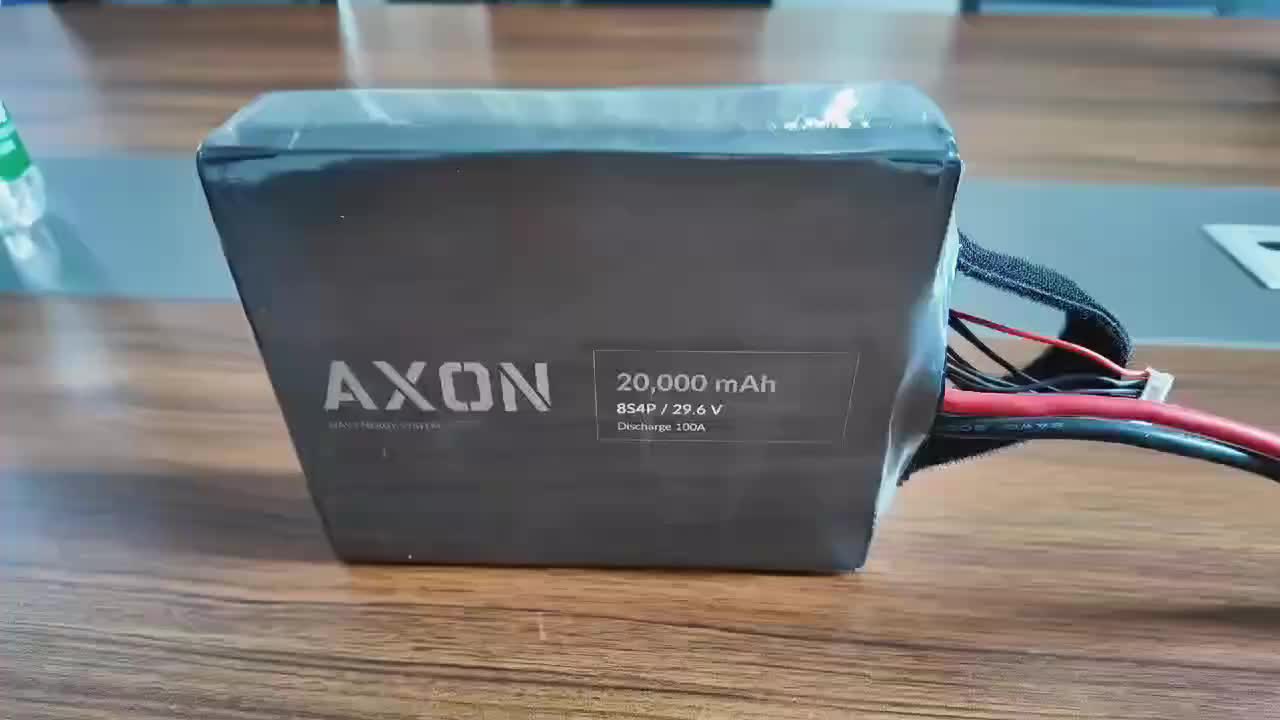

AXON 8S4P / 20,000 mAh / 592 Wh

HIGH DISCHARGEMISSION CONFIGUREDTELEMETRY-DRIVENOEM READY

01 / DEPLOYABLE PACKS

CHOOSE YOUR
POWER CLASS.

Four launch configurations plus custom engineering. Built for operators who know that voltage sag, mass and current delivery decide the flight.

Loading systems…

AXON ENGINEERING

NOT ANOTHER
BATTERY SHOP.

Generic packs force the aircraft to compromise. AXON starts with the operating envelope and builds the energy system around it.

01Select chemistry and energy-density target.
02Define 3S–20S voltage architecture.
03Specify current—or upload real flight data.
04Receive an engineered pack proposal.

02 / CONFIGURATION WORKFLOW

BUILD THE PACK
AROUND THE AIRCRAFT.

STEP 01

SELECT THE CELL ENVELOPE.

Choose the performance priority and target cell energy-density class.

LI-ION / ENDURANCEMaximum energy and long-duration flight profilesLI-ION / POWERHigher current reserve with strong usable energyLIPO / HIGH DISCHARGEFast current response for demanding load changesENGINEER SELECTLet AXON choose from motor and flight data

ENERGY-DENSITY TARGET 400 Wh/kg

280350400450500550600

Cell-level target class. Final pack-level Wh/kg depends on interconnects, protection, casing and thermal design.

STEP 02

DEFINE THE VOLTAGE.

Select the series architecture. Nominal voltage is calculated at 3.7 V per cell.

SELECTED ARCHITECTURE6S / 22.2 V

STEP 03

DEFINE THE LOAD.

Enter current demand directly—or upload the latest flight log with motor data and target duration.

REQUIRED CURRENT ADESIGN PRIORITY

MOTOR / ESC / PROPELLER DATATARGET FLIGHT DURATION MINLAST FLIGHT LOGPX4 ULog and structured CSV enter automated intake. ArduPilot DataFlash enters technical review.

CONNECTOR / INTERFACE

STEP 04

REQUEST THE BUILD.

ORGANISATIONWORK EMAILDELIVERY COUNTRYINITIAL QUANTITYPLATFORM / APPLICATION

DATA → ENERGY → FLIGHT

03 / FLIGHT INTELLIGENCE

LET THE LAST FLIGHT
SPECIFY THE NEXT PACK.

Upload measured voltage, current and energy data. Add motor specifications and target flight time. AXON turns operating evidence into a configuration brief for technical review.

VOLTAGE SAGCURRENT DEMANDENERGY USEDTHERMAL SIGNALS

START WITH FLIGHT DATA

AXON / ULTIMATE PARTNERS GROUP

STOP ADAPTING THE AIRCRAFT
TO THE WRONG BATTERY.

CONFIGURE AXON POWER →
